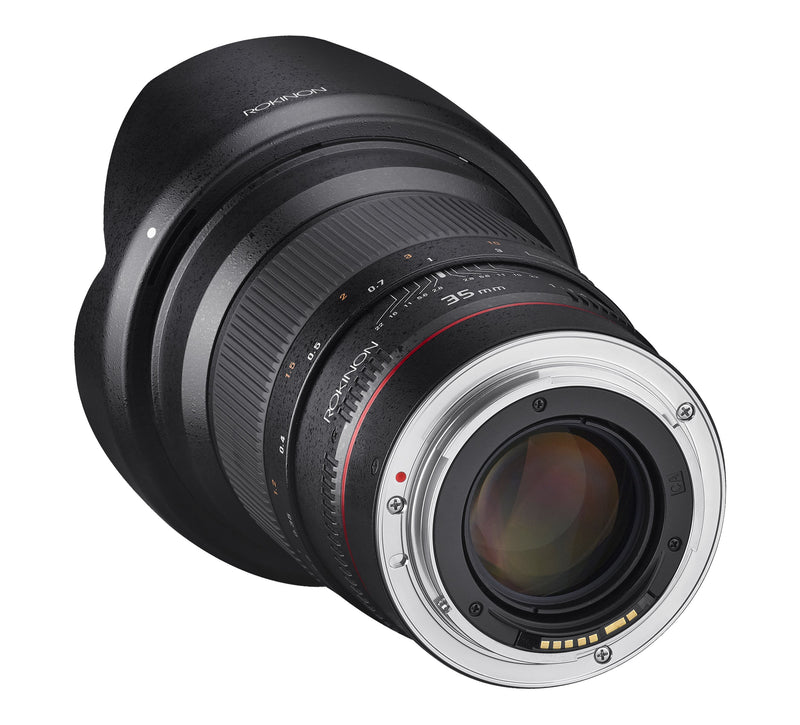

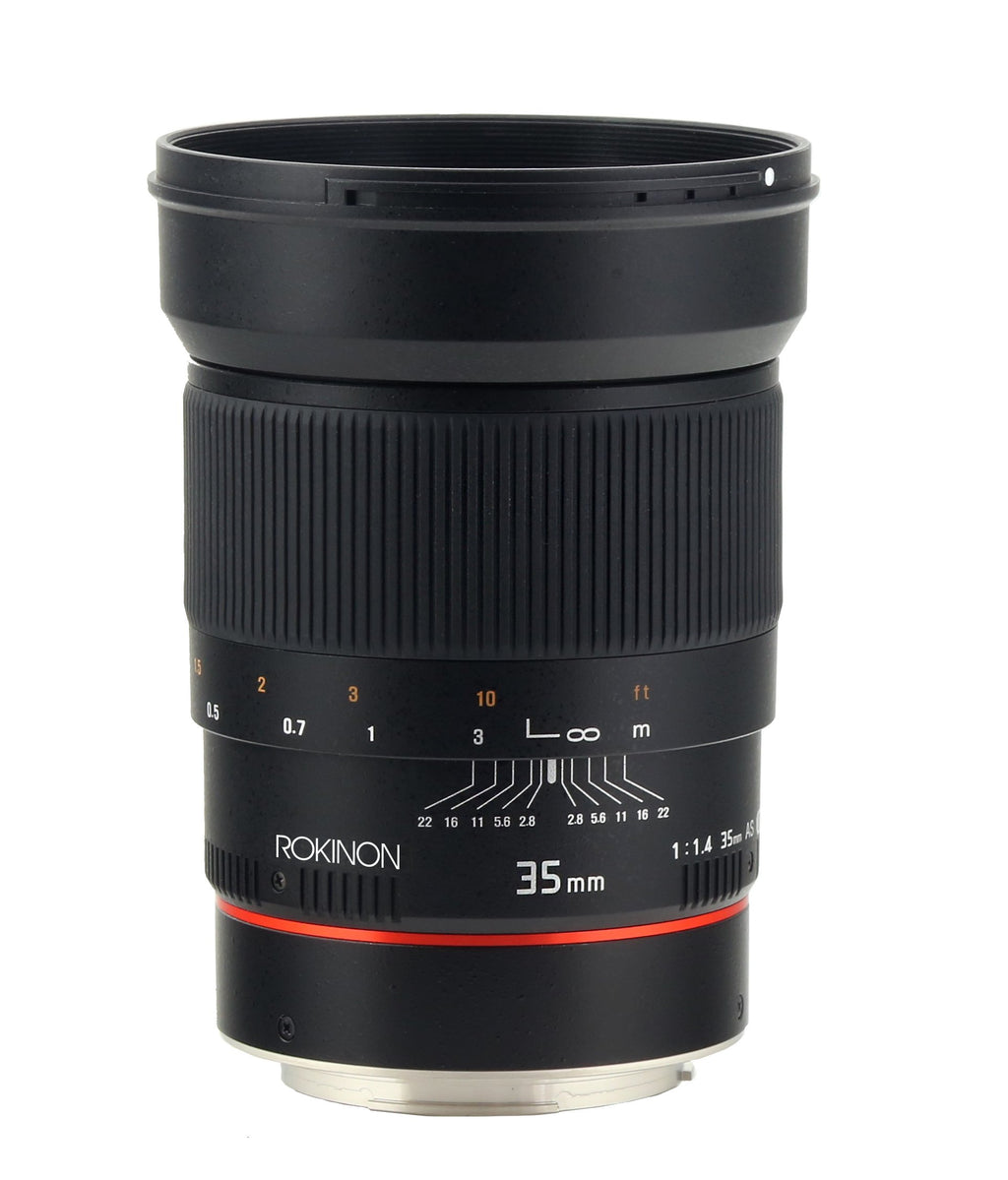

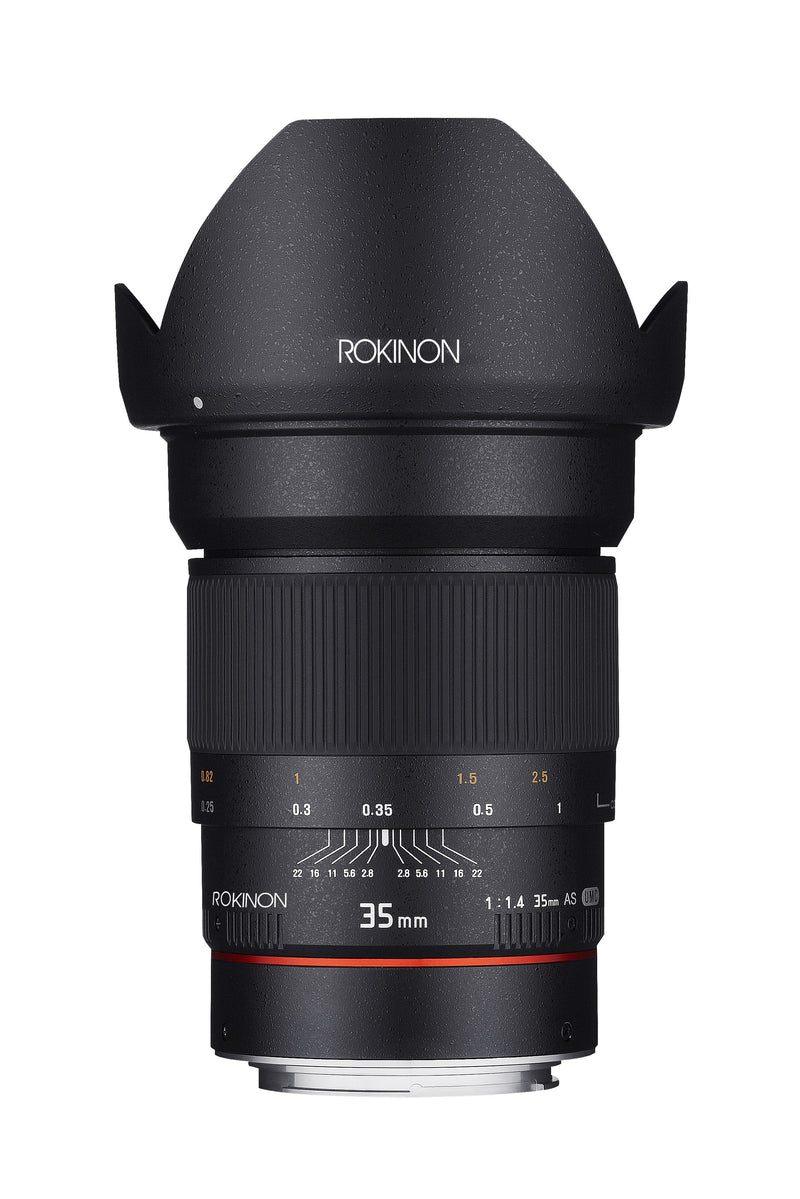

The Rokinon 35mm f/1.4 AS UMC Lens is a prime standard wide-angle lens designed for both full-frame and APS-C sized sensors; when used with an APS-C sensor the 35mm-equivalent focal length is 56mm. It is well-suited to working in a variety of situations ranging from landscape to portraiture. Its fast f/1.4 maximum aperture is further beneficial to working in low-light conditions and for greater control over selective focus and shallow depth of field effects.
Two high refractive index elements and one aspherical element have been incorporated into the optical design to minimize chromatic aberrations in order to produce sharper images. A UMC coating has also been applied to lens elements to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and more contrast-rich imagery.
- When used with full-frame image sensors, this lens' wide-angle perspective is well-suited to use in a broad array of conditions. When used with APS-C-sized sensors, this 56mm equivalent standard prime lens provides a similar field of view to normal vision.
- Fast f/1.4 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
- Two high refractive index elements and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
- UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
User Manual Download
Specifications
SPECIFICATIONS |
1:1.4 35mm F1.4 AS UMC |
APERTURE RANGE |
F1.4 ~ 22 |
OPTICAL CONSTRUCTION
|
12 ELEMENTS IN 10 GROUPS (1 ASPHERICAL LENS) |
MINIMUM FOCUSING DISTANCE
|
0.3m (0.98ft) |
FILTER SIZE |
Φ77mm |
MAXIMUM DIAMETER |
Φ83mm |
MOUNT |
Canon EF with AE |
Canon EF |
Nikon F with AE |
Fujifilm X |
Sony E |
Micro 4/3
|
ANGLE OF VIEW |
Full Frame |
63.1˚ |
63.1˚ |
63.1˚ |
- |
63.1˚ |
- |
ASP-C |
40.8˚ |
40.8˚ |
43.2˚ |
43.2˚ |
43.2˚ |
- |
FOUR-THIRDS 4/3”
|
- |
- |
- |
- |
- |
33.4˚ |
LENGTH (mm) |
111.5mm |
111.5mm |
109mm |
137.8mm |
137.5mm |
136.3mm |
WEIGHT (g) |
710g |
710g |
690g |
780g |
735g |
730g |
FUNCTION |
A / S / M / P mode (NIKON F with AE), Av / Tv / M / P mode (CANON EF with AE) |
Canon EF with AE
Model: AE35M-C
UPC: 0-84438-76270-9
Focal Length: 35mm
Maximum Aperture: F1.4
Coverage: Full Frame (FX)
Optical Construction: 12 Glass Elements In 10 Groups
Aperture Range: T1.5 to T22
Diaphragm Blades: 8
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 12 ” (0.3m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.3”(83mm)
Weight: 25.04oz (710g)
Length: 4.38” (111.5mm)
Canon EF
Model: RK35M-C
UPC: 0-84438-15957-8
Focal Length: 35mm
Maximum Aperture: F1.4
Coverage: Full Frame (FX)
Optical Construction: 12 Glass Elements In 10 Groups
Aperture Range: T1.5 to T22
Diaphragm Blades: 8
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 12 ” (0.3m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.3”(83mm)
Weight: 25.04oz (710g)
Length: 4.38” (111.5mm)
Nikon F with AE
Model: RK35MAF-N
UPC: 0-84438-15958-5
Focal Length: 35mm
Maximum Aperture: F1.4
Coverage: Full Frame (FX)
Optical Construction: 12 Glass Elements In 10 Groups
Aperture Range: T1.5 to T22
Diaphragm Blades: 8
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 12 ” (0.3m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.3”(83mm)
Weight: 24.33oz (690g)
Length: 4.29” (109mm)
Sony E
Model: RK35M-E
UPC: 0-84438-76232-7
Focal Length: 35mm
Maximum Aperture: F1.4
Coverage: Full Frame (FX)
Optical Construction: 12 Glass Elements In 10 Groups
Aperture Range: T1.5 to T22
Diaphragm Blades: 8
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 12 ” (0.3m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.3”(83mm)
Weight: 25.92oz (735g)
Length: 5.41”137.5mm)
Micro 4/3
Model: RK35M-MFT
UPC: 0-84438-76233-4
Focal Length: 35mm
Maximum Aperture: F1.4
Coverage: Full Frame (FX)
Optical Construction: 12 Glass Elements In 10 Groups
Aperture Range: T1.5 to T22
Diaphragm Blades: 8
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 12 ” (0.3m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.3”(83mm)
Weight: 25.75oz (730g)
Length: 5.36” (136.3mm)
Fuji X
Model: RK35M-FX
UPC: 0-84438-76242-6
Focal Length: 35mm
Maximum Aperture: F1.4
Coverage: Full Frame (FX)
Optical Construction: 12 Glass Elements In 10 Groups
Aperture Range: T1.5 to T22
Diaphragm Blades: 8
Coating: Ultra Multi-Coating
Minimum Focusing Distance: 12 ” (0.3m)
Filter Size: 77mm
Lens Hood: Removable Petal Shaped
Maximum Diameter: 3.3”(83mm)
Weight: 27.51oz (785g)
Length: 5.42” (137.8mm)
